I noticed by chance that my M2 SSD was getting really hot. I couldn't even leave my finger on it, so I took it apart.

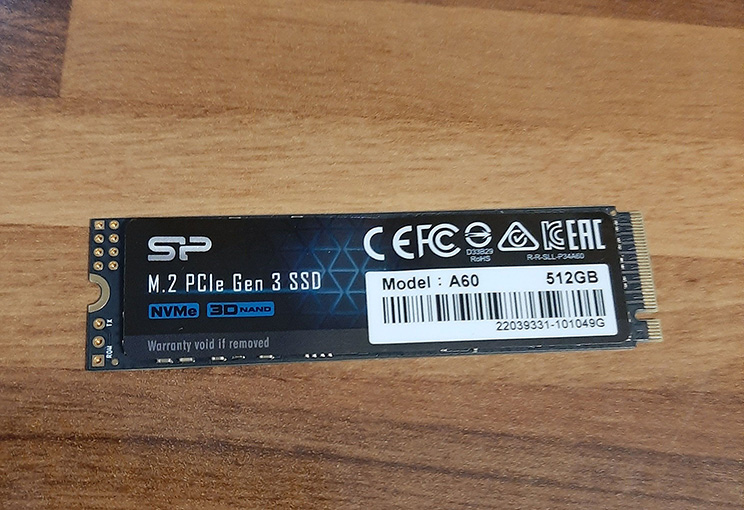

Here's the baby.

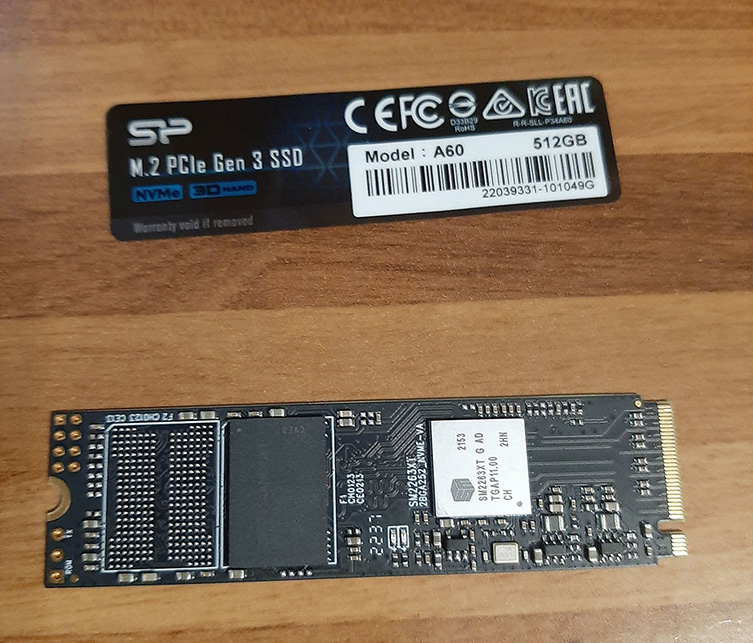

Warranty void if removed… choose between the label or overheating?
The choice is easy, we'll remove the label.

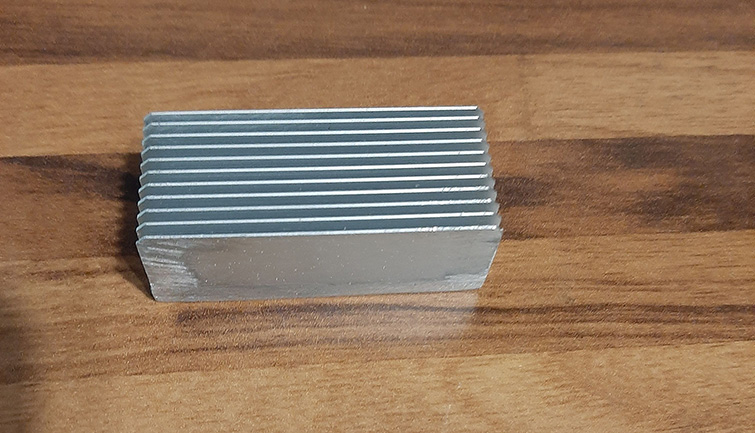

I cut a radiator to the right size
from an old Pentium 3 radiator that was lying around.

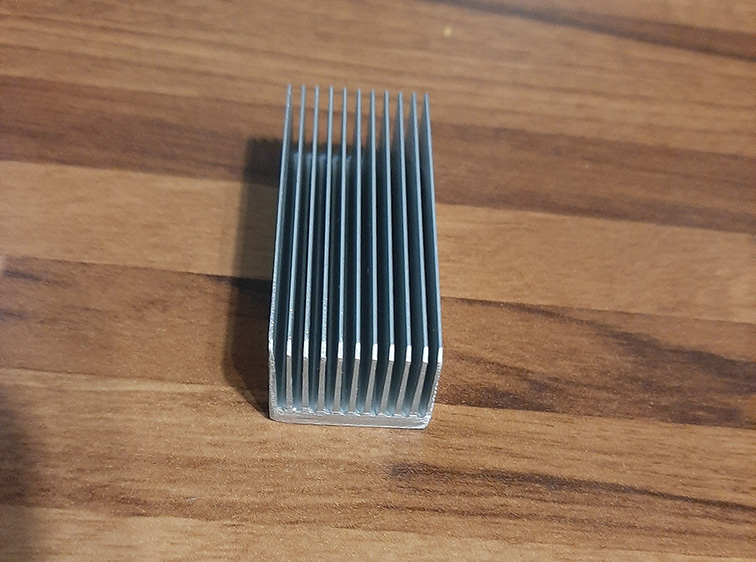

Another angle of the radiator that fits perfectly.

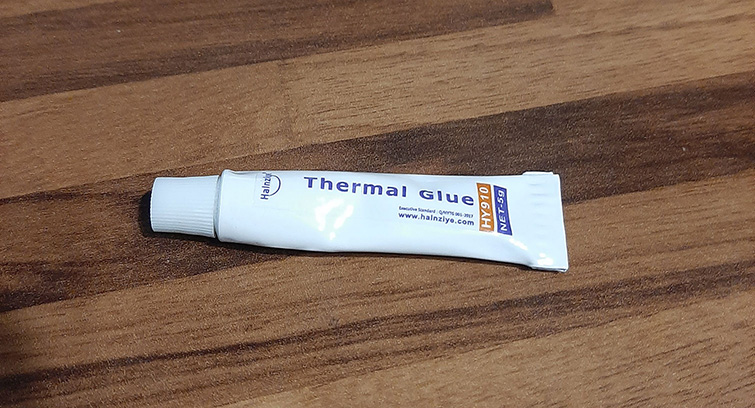

I got some thermal glue.
I'm talking about glue, not thermal paste.
The assembly will be permanent.

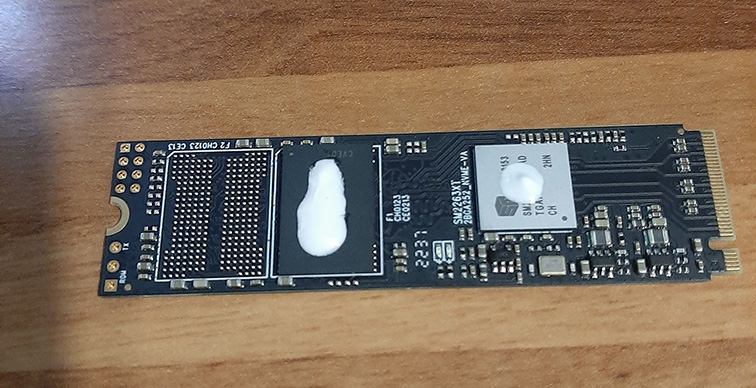

Here we go, we put a little glue on.
No need to use tons of it, it will spread when the radiator is installed.

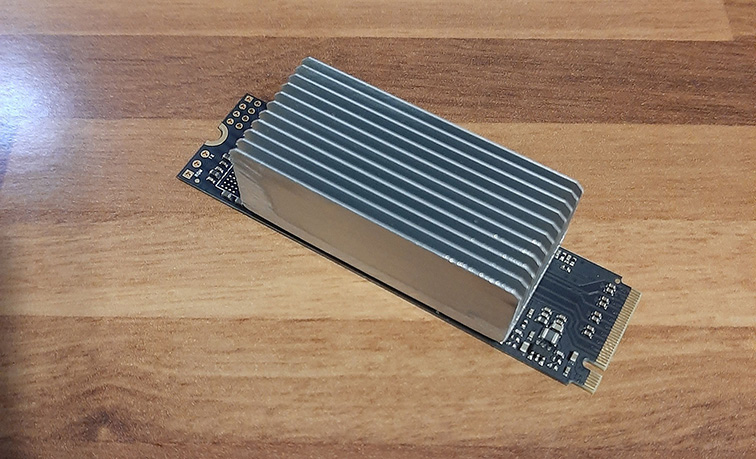

It's glued, I'll leave it to dry overnight to be on the safe side

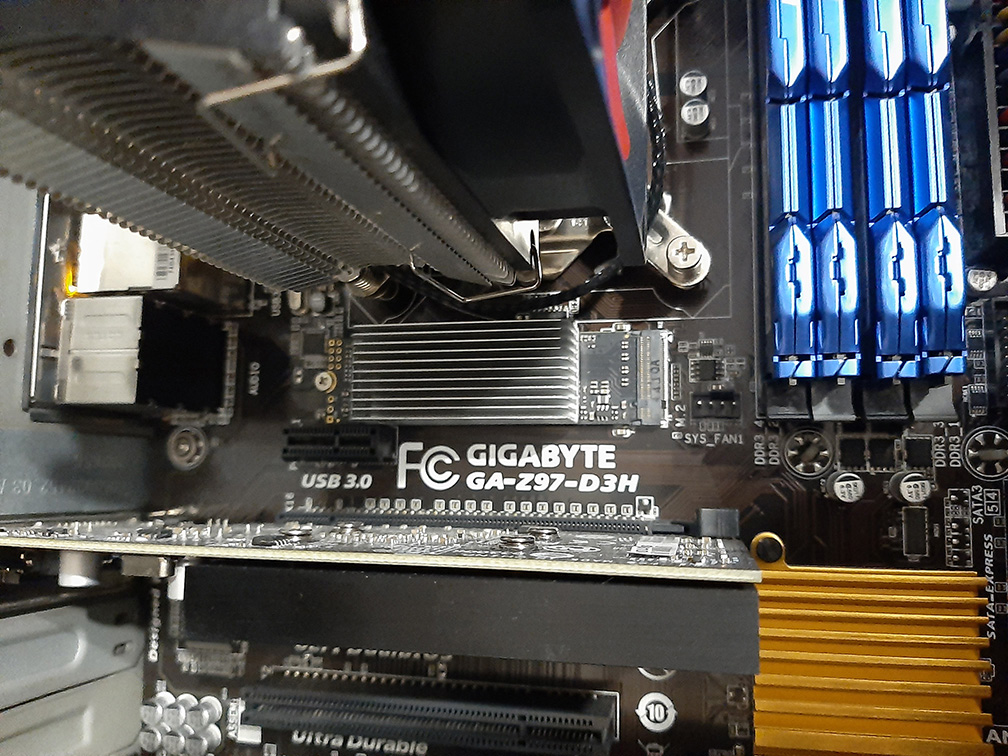

Reassembly the next day
